SY35U PRO
- SY35U PRO mini excavator is a compact and versatile machine that can rotate at the base while remaining within the width of its track called “ZERO TAIL SWING” and efficiently works in tight and compact spaces.
Operating Weight:
3735-3935kg
Engine Make:
Yanmar Engine
Engine Power:
28HP@2200rpm
Boom:
2.54m
Arm:
1.4m
Bucket:
0.12-(STD) trench
Max. Digging Depth:
3125mm
Max. Digging Reach:
5480mm
About SY35U PRO
Compact Excavator for Confined Sites
SY35U PRO excavator is a compact and versatile machine that can rotate at the base while remaining within the width of its track called “ZERO TAIL SWING” and efficiently works in tight and compact spaces. Optimized engine & hydraulic pump control enabled with two operating modes offer best-in-class output & fuel efficiency in the toughest applications. With improved design and manufacturing processes, this machine gives reliable performance for longer. A remote monitoring system, called EVI, helps the user monitor various operating parameters and improve service efficiency.
FEATURES
Compact and Versatile
Compact and Versatile
- Compact design with the ability to rotate the base of the upper frame within the width of its track (ZTS)
- Highly versatile for operation in tight, confined spaces and proximity to obstacles
- Independent boom swing and boom offset feature for digging close to walls
Excellent Performance
Excellent Performance
- Equipped with a popular Yanmar engine known for powerful and reliable performance
- Specially designed advanced hydraulic system for optimum flow and fuel efficiency
- Work modes and auto idle features to reduce overall fuel consumption
High Reliability
High Reliability
- Reliable and durable major aggregates with rigid structures for unmatched service life
High on Operator Comfort & Easy to Use
High on Operator Comfort & Easy to Use
- Ergonomically placed levers with a pilot control system for smooth and comfortable operation
- Canopy design for all-around visibility, particularly useful in tight spaces
- Wide-opening hood covers with mechanical struts for easy access to critical maintenance components
RELATED PRODUCTS
SY60C
SY60C
- Operating Weight: 5780Kg
- Engine Make: Isuzu Engine
- Engine Power: 48.9HP@2200rpm
- Boom: 3m
SY20U
SY20U
- Operating Weight: 1980 Kg
- Engine Make: YANMAR Engine
- Engine Power: 19.8HP@2400rpm
- Boom: 1.81 m

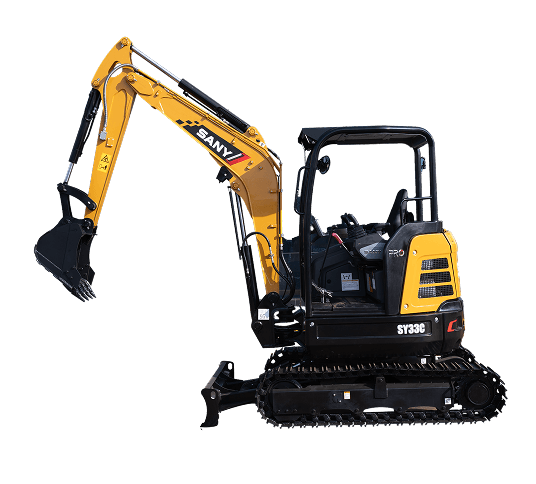

SY33C PRO
